China Cheap price China Steel Pipe Storage Double Side Cantilever Rack

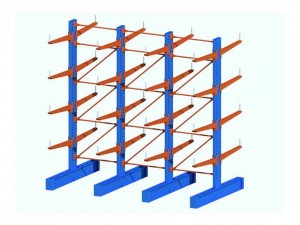

Single-side Cantilever Pallet Racking is one kind of cantilever racking, it has Double-side Cantilever Racking also.


  • FOB Price: OEM
  • Supply Ability: 10000 Pieces per Month
  • Deliver Time: 20-25 Days
  • Product Detail

    Product Tags

    We’re proud from the higher client fulfillment and wide acceptance due to our persistent pursuit of high quality both on product and service for China Cheap price China Steel Pipe Storage Double Side Cantilever Rack, “Passion, Honesty, Sound support, Keen cooperation and Development” are our plans. We’ve been here anticipating good friends all around the globe!
    We’re proud from the higher client fulfillment and wide acceptance due to our persistent pursuit of high quality both on product and service for China Warehouse Rack, Storage Rack, Our R&D department always designs with new fashion ideas so we could introduce up-to-date fashion styles every month. Our strict production management systems always ensure stable and high quality products. Our trade team provides timely and efficient services. If there are any interest and inquiry about our products, please contact us in time. We would like to establish a business relationship with your honored company.

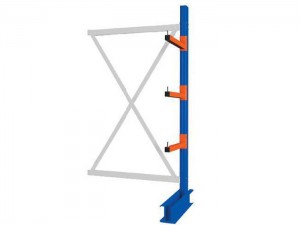

    cantilever-racking7Single-side Cantilever Pallet Racking is one kind of cantilever racking, it has Double-side Cantilever Racking also. This kind of racking provides cantilever on one side. The design of the back pull increases the overall capacity of the shelves, easy installation and provides complete accessories.

    Loading capacity: The single side cantilever shelves generally around 1000kg. The specially reinforced column structure can up to 2000 ~ 3000kg capacity.

    Single side cantilever racking standardize the management of warehouse materials. It can be used with stackers or forklifts to improve material circulation efficiency, reduce storage and transportation costs, increase economic benefits, and improve the mechanization level of material circulation and reduce labor intensity.

    What’s the benefit of cantilever racking

    ●  Combined type, easy to move, light structure, good loading capacity

    ●  High space utilization

    ●  Well suited for longer cargos

    ●  Single cantilever shelf length can be freely combined according to the warehouse conditions

    ●  Meet the needs of low-height warehouse

    cantilever-racking13 cantilever-racking14

    Cantilever Racking Specification(MM)
    Upright Baseplate Spec Thickness Cross Section
    C200*40 2.0/2.5 cantileveruprights
    C300*45 3.0
    HN150*75*5*7
    HN175*90*5*8
    HN200*100*5.5*8
    HN250*125*6*9
    HN300*150*6.5*9
    Arm 80*40*60 1.5 cantileverarm
    100*40*60 1.5/2.0
    120*40*60 2.0
    140*40*60 2.0/2.5
    160*40*60 2.0/2.5
    180*40*60 2.5/3.0
    200*40*60 3.0
    220*40*60 3.0
    Bracing 32 1.5 cantileverbrace
    40*40 4.0



    Cantilever Pallet Racking
    Length(MM) Arm(MM) Height(MM) Material and Surface Treatment
    800 600 2000 The surface is sprayed with epoxy resin electrostatic treatment, anti-corrosion, anti-rust.
    1000 1000 3000
    1200 1200 4500
    1500 1500 6000
    Common size, OEM available.
