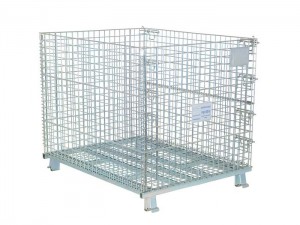

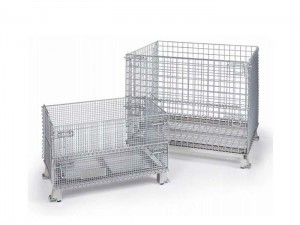

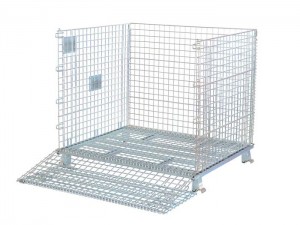

Folding Wire Container with Lid
The warehouse wire mesh cage uses Q235 high wire as the raw material. Semi-finished mesh is formed by butt welding. After the mesh was made, it surface treatment use as galvanizing or powder coating(most of the storage cages are galvanized). After the surface treatment is completed, it can be assembled and finally made into finished products.
The size of the warehouse storage cage can be made according to the actual requirements of the customer’s needs. When purchasing the warehouse storage cage, you should consider the external dimensions, the maximum loading requirements, whether your storage cage is used for storage or for turnover.
|
Standard size LxWxH(mm) |
Wire Diameter (mm) |
Mesh (mm) |
Load Capacity (kg) |
|
800x600x640 |
5 / 6 |
50×50 / 50×100 |
700 |
|
800x600x640 |
5 / 6 |
50×50 / 50×100 |
500 |
|
1000x800x840 |
5 / 6 |
50×50 / 50×100 |
1200 |
|
1000x800x840 |
5 / 6 |
50×50 / 50×100 |
800 |
|
1200x800x890 |
5 / 6 |
50×50 / 50×100 |
1500 |
|
1200x800x890 |
5 / 6 |
50×50 / 50×100 |
800 |
|
With Caster Custom sizes available |
|||
