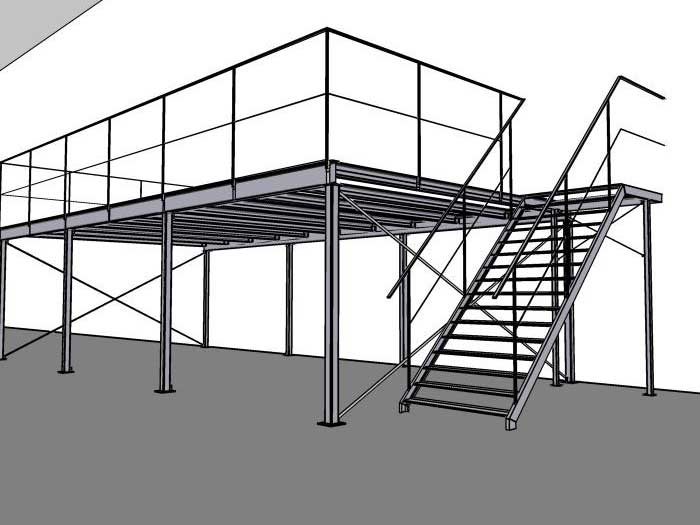

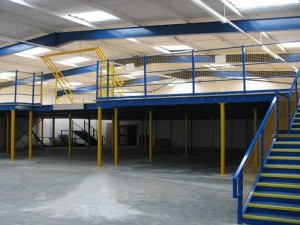

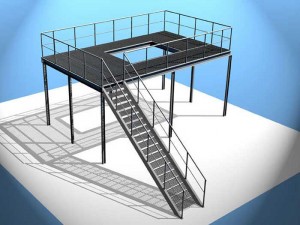

Heavy Duty Industrial Steel Platform Structure

Steel Platform Structure is also called working platform.The modern steel platform structure has various structural forms and functions.
The feature for the structure is the fully assembled structure with flexible design. It can design and manufacture steel structure platforms that meet the warehouse site and use function requirements, and logistics requirements according to different site conditions. It is widely used in modern storage.

Introduction of Steel Platform Structure

●  Steel platform is complete mixed metal framework to the ground
●  Elevators will be equipped
●  The locking mechanism gear is place between your ground to match all of them.
●  Smooth Flooring along with powerful and standard filling capability.
●  The amount of flooring could be created based on the warehouse space.

Steel Platform Structure Specification

Uprights	Specification(MM)	Thickness(MM)	Cross Section
	F100*100	4.0-6.0
	F120*120
	F150*150
	F160*160
	F200*200
	HN200*100*5.5*8
	HN250*125*6*9
	HN30*150*7*11

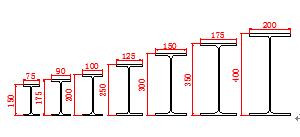

Main Beam	Specification(MM)	Thickness(MM)	Cross Section
	HN150*75*5*7
	HN175*90*5*8
	HN200*100*5.5*8
	HN250*125*6*9
	HN300*150*6.5*9
	HN350*175*7*11
	HN400*200*8*13

	Specification(MM)	Thickness(MM)	Cross Section
Sub Beam	C200*40	2.0 / 2.5
	C300*45	3.0
	HN150*75*5*7
	HN175*90*5*8
	HN200*100*5.5*8
	HN250*125*6*9
	HN300*150*6.5*9
	HN350*175*7*11
	HN400*200*8*13
