Classifications of warehouse storage rack

The application of the warehouse storage rack is widely used; it can be seen everywhere in our daily life, it is very convenient for our life, and also beautifies our structure.

The classifications of warehouse storage rack are various, according to the loading capacity, they can be divided into light duty shelf, medium duty rack and heavy duty rack. According to the heights, they can be divided into low-level rack and high-level rack. According to the type, they can be divided into drive-in pallet rack, intensive racking, and rotating racking.

Light duty shelf

Light duty shelf is a highly universality structural system that can be assembled randomly to meet the needs of emergency use. It can also be assembled as a light-duty shelf, workbench, and tool cart, suspension system, insurance nets, and support frames.

Medium duty rack:

Unique outline, reasonable structure, convenient assembly and disassembly, bolt-free, reinforcement and strong, high loading capacity, widely used in stores, enterprise warehouses, and institutions.

Heavy-duty rack:

It is made of cold-rolled steel without joints in the middle. It has high loading capacity and is not easy to deform. And it is reliable in connection and easy to assemble, and disassemble. It uses lock nails to the beams to prevent the forklift from being picked up when working. Also, it is suitable for large warehouses.

Low-level height racking:

It is normally below 5 meters and is normally used in a common warehouse.

High-level racking:

Generally, more than 10 meters, some can be up to 20 meters, equipped with stacker trucks and other storage equipment for warehousing operations, can make warehouse management work fast and flexible, generally used for an automatic warehouse.

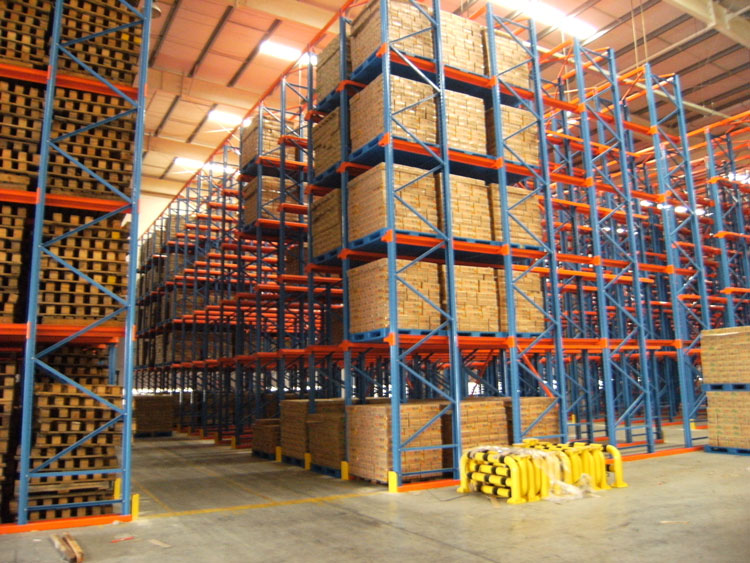

Drive-in pallet rack:

Forklifts or unmanned trucks with forks can enter the channel to access the goods. Usually, the single-side pickup should not exceed 7 pallet position depths. The guide track can be equipped according to actual needs. Increased by more than 30%, drive in pallet rack is suitable for small-volume, bulk-type storage of goods, widely used in wholesale, cold storage, and the food, tobacco industry.

Intensive rack:

Combining nowadays Internet technology and intelligent control technology, it can realize intelligent control of goods storage. With an automatic shelf retracting function, it can be adjusted according to the size of the warehouse, for electronic products, valuables, fragile items, and so on, which can achieve orderly and efficient storage.

Rotating rack:

Equipped with an electric drive that can be operated along a circular orbit consisting of two straight segments and two curved segments, controlled by a switch or with a small electronic computer. When accessing the goods, the cargo number of the goods is entered by the control panel button, and the cargo is automatically rotated to the picking point at the nearest distance to stop. The picking route is short and the picking efficiency is high. Can be used in warehouses with the high frequency of entry and exit, and multi-variety picking.
