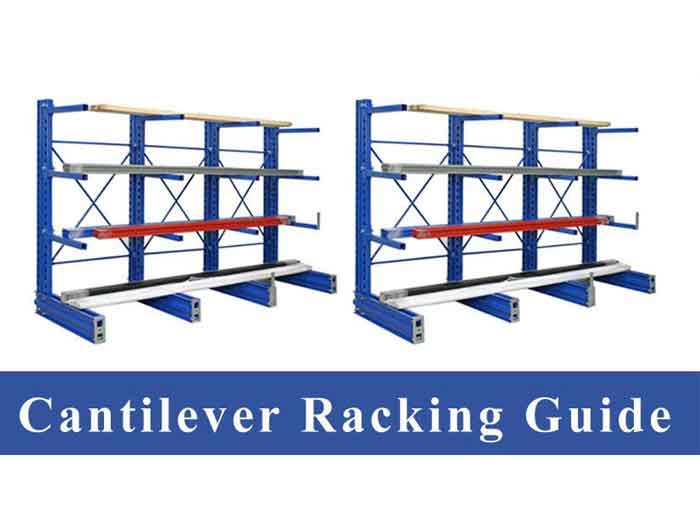

Warehouse Adjustable Single-Sided Cantilever Pallet Racking

Single-side Cantilever Pallet Racking is one kind of cantilever racking, it has Double-side Cantilever Racking also. This kind of racking provides cantilever on one side. The design of the back pull increases the overall capacity of the shelves, easy installation and provides complete accessories.

Loading capacity: The single side cantilever shelves generally around 1000kg. The specially reinforced column structure can up to 2000 ~ 3000kg capacity.

Single side cantilever racking standardize the management of warehouse materials. It can be used with stackers or forklifts to improve material circulation efficiency, reduce storage and transportation costs, increase economic benefits, and improve the mechanization level of material circulation and reduce labor intensity.

What’s the benefit of cantilever racking

●  Combined type, easy to move, light structure, good loading capacity

●  High space utilization

●  Well suited for longer cargos

●  Single cantilever shelf length can be freely combined according to the warehouse conditions

●  Meet the needs of low-height warehouse

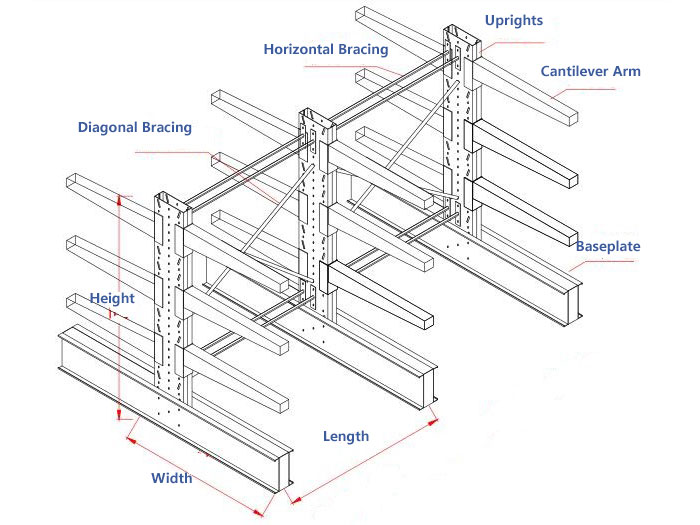

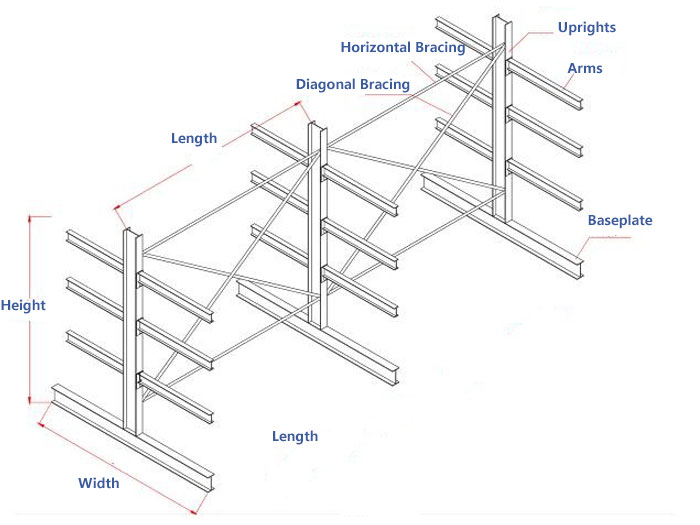

Cantilever Racking Specification(MM)

Upright Baseplate	Spec	Thickness	Cross Section
	C200*40	2.0/2.5
	C300*45	3.0
	HN150*75*5*7
	HN175*90*5*8
	HN200*100*5.5*8
	HN250*125*6*9
	HN300*150*6.5*9

Arm	80*40*60	1.5
	100*40*60	1.5/2.0
	120*40*60	2.0
	140*40*60	2.0/2.5
	160*40*60	2.0/2.5
	180*40*60	2.5/3.0
	200*40*60	3.0
	220*40*60	3.0
Bracing	32	1.5
	40*40	4.0
